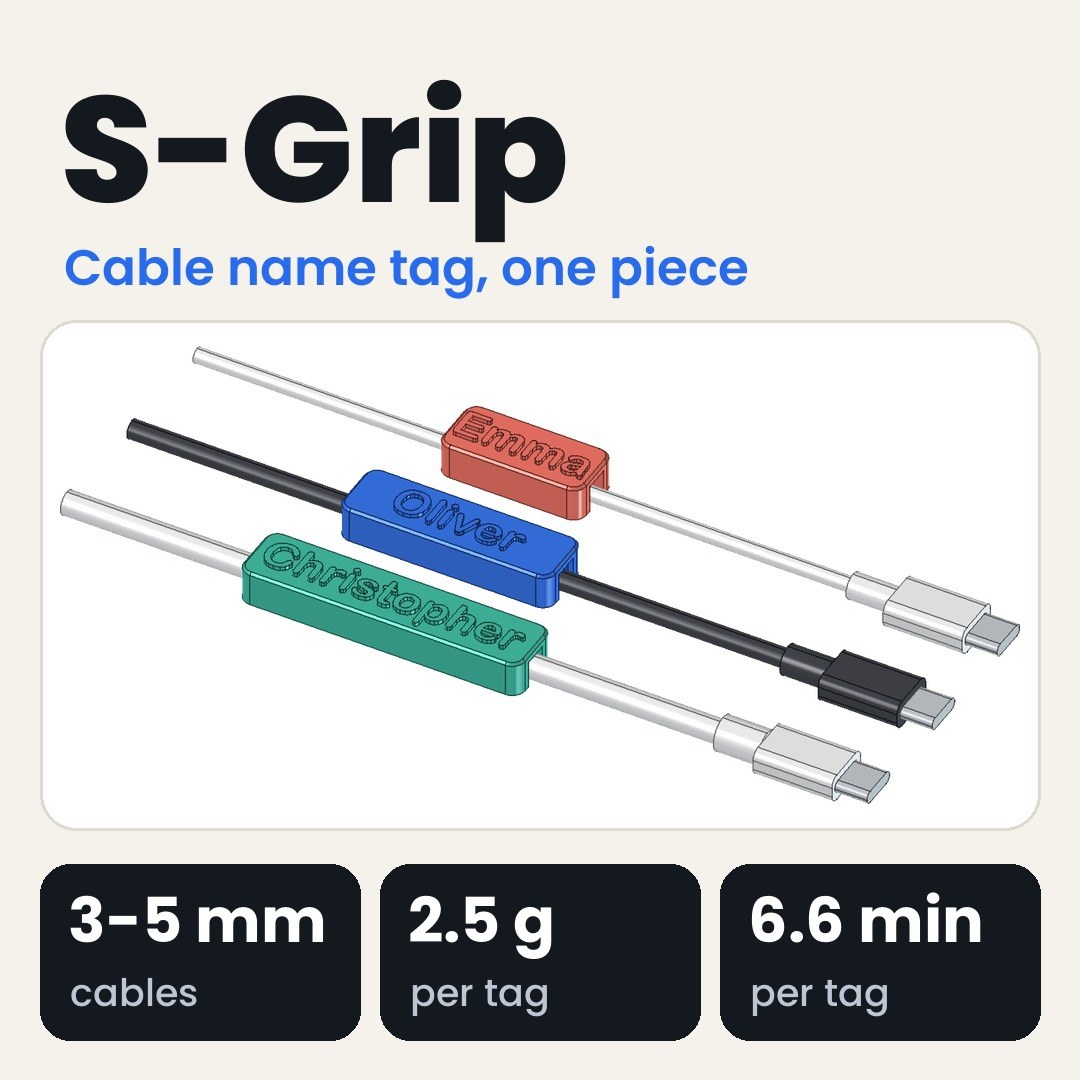

S-Grip

Download the 3MF project Download 3MF + notes (zip)

OrcaSlicer 2.4.2, Bambu Lab P1S 0.4 nozzle, 0.20 mm, PLA, Smooth High Temp plate. No supports.

Change a name

1. Open the Objects list and click the name under a tag.
2. Click the Text tool (T) in the top toolbar.
3. Type the new name and press Done.

For the first test

• Four lengths are on the plate: 29, 43, 57 and 71 mm.
• Keep 0.20 mm layers and 2 walls. The spring fingers are exactly two walls thick.
• The font is a placeholder (Arial Rounded MT Bold). Pick your own in the Text tool.
• Please tell me which cable diameters you tried, whether it presses on easily and whether it slides.
